EO-X-10 Microphone

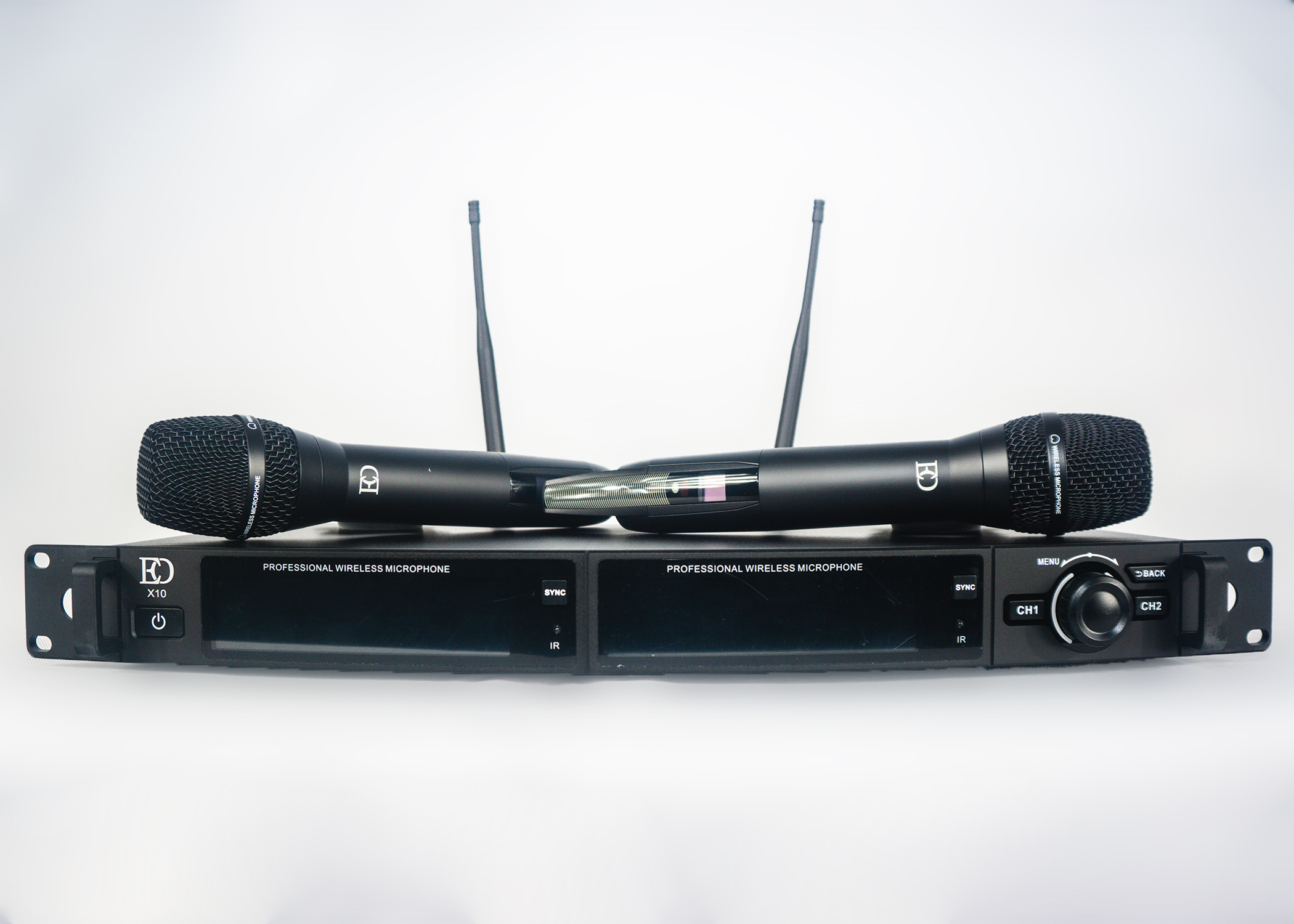

The EO-X-10 is a professional UHF wireless microphone system built for stages, churches, conference halls, and live events that demand dependable, interference-free audio. The system pairs a rack-mountable dual-channel receiver with two handheld microphone transmitters, giving you the flexibility to run two independent mics or vocalists at once.

At its core, the EO-X-10 uses an optimized PLL synthesizer and microprocessor-controlled frequency locking for rock-solid stability, paired with advanced noise suppression and secure squelch control to keep your sound clean even in busy RF environments. True diversity (automatic antenna selection) reception eliminates dropouts and signal interruptions, while the built-in automatic frequency scan instantly finds the clearest channel in any venue.

Setup is fast and intuitive — sync a transmitter to the receiver in seconds using the infrared pairing window, name each channel for easy identification, and lock the controls to prevent accidental changes mid-event. With 2,281 factory-preset channels across the 641–698MHz UHF band, multiple EO-X-10 systems can be stacked and run side-by-side (up to 16 units, depending on squelch setting) without interference.

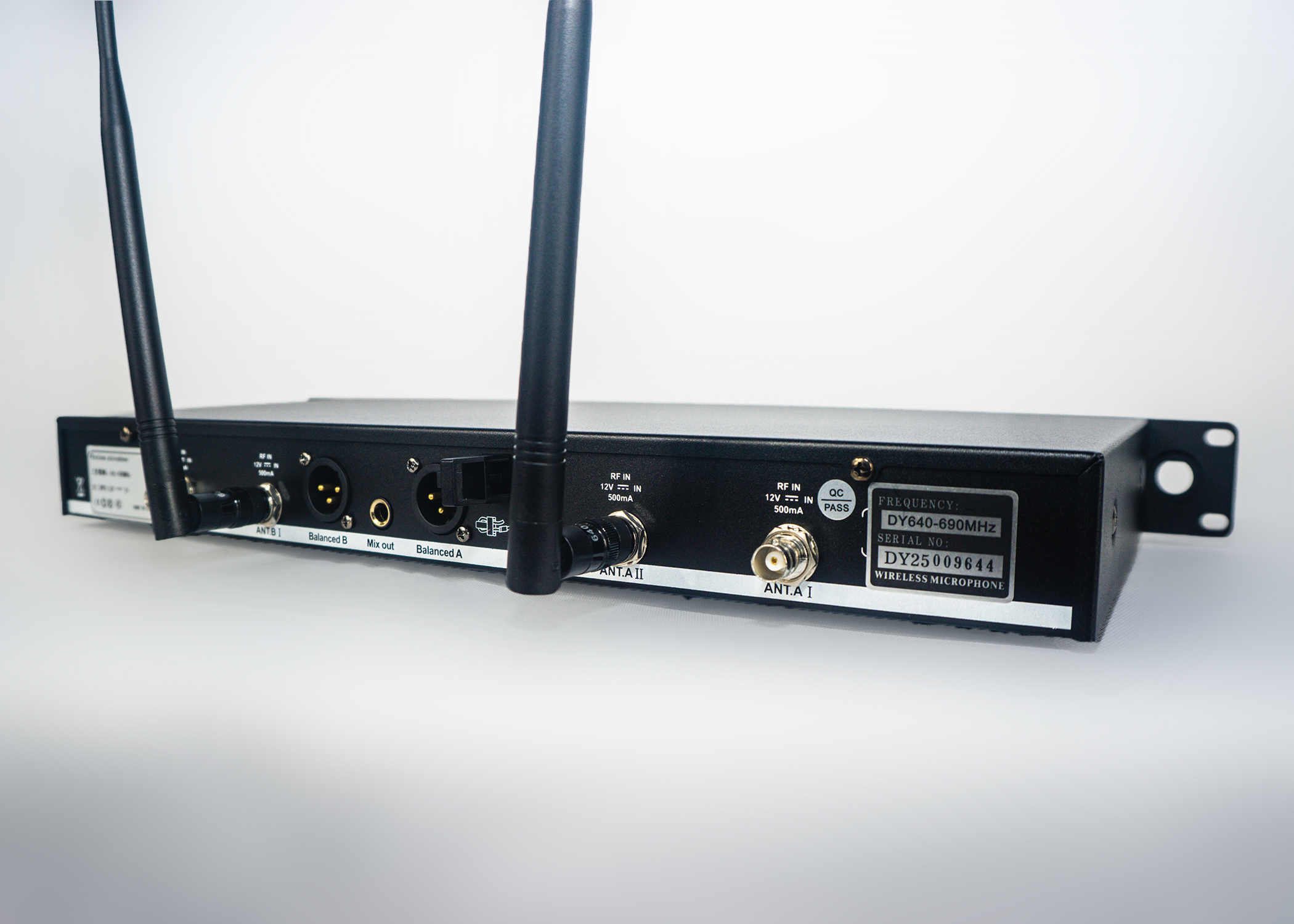

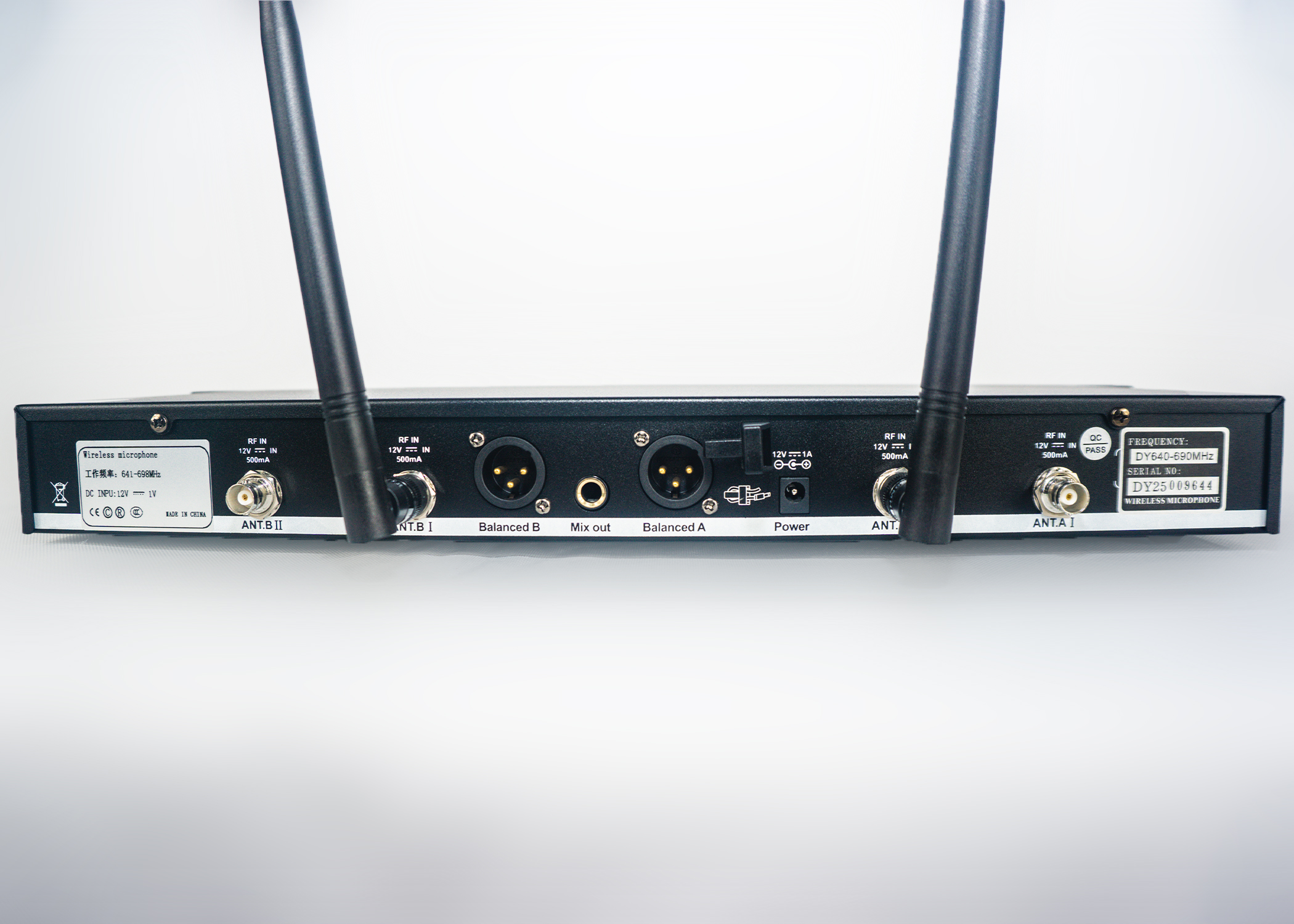

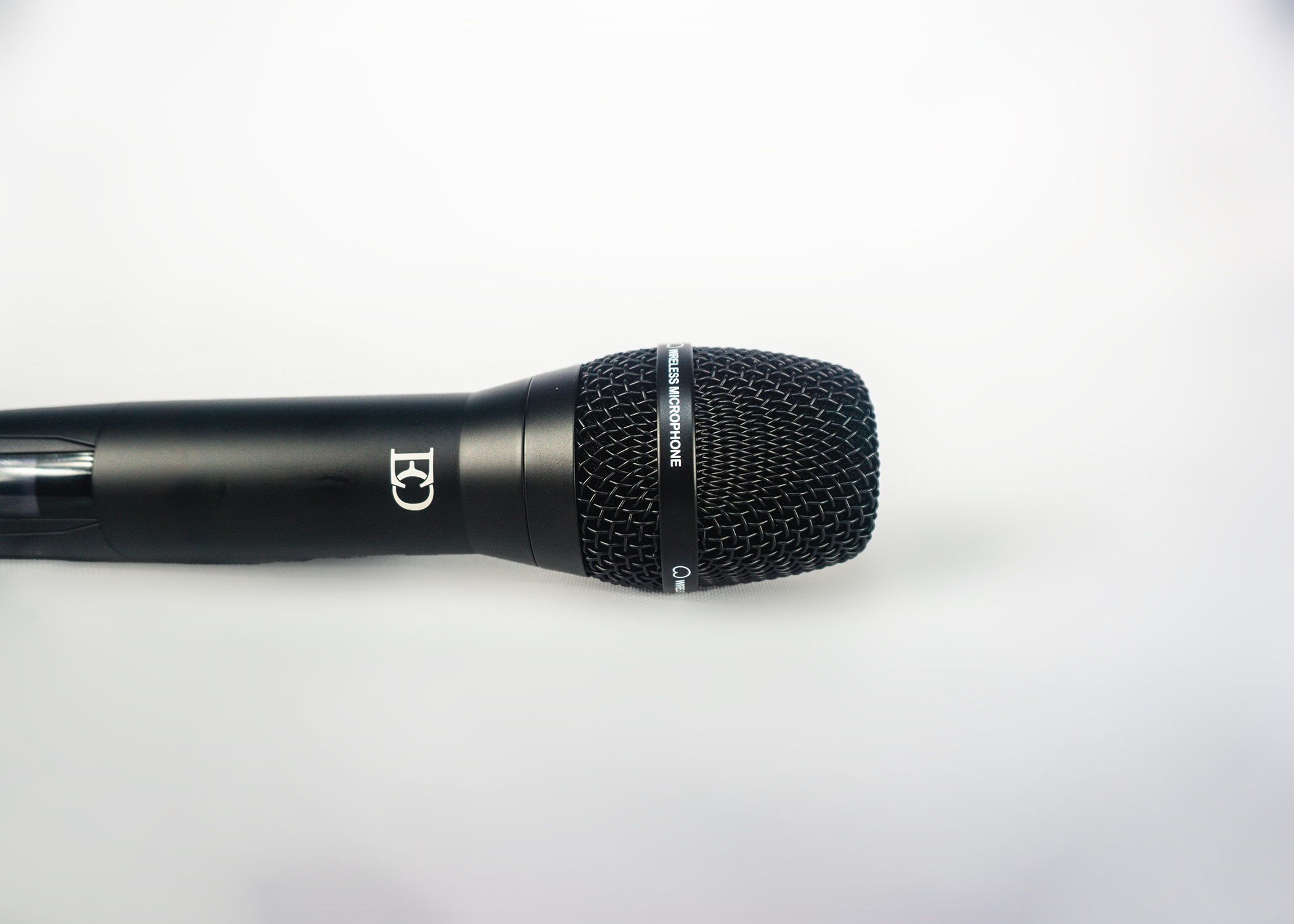

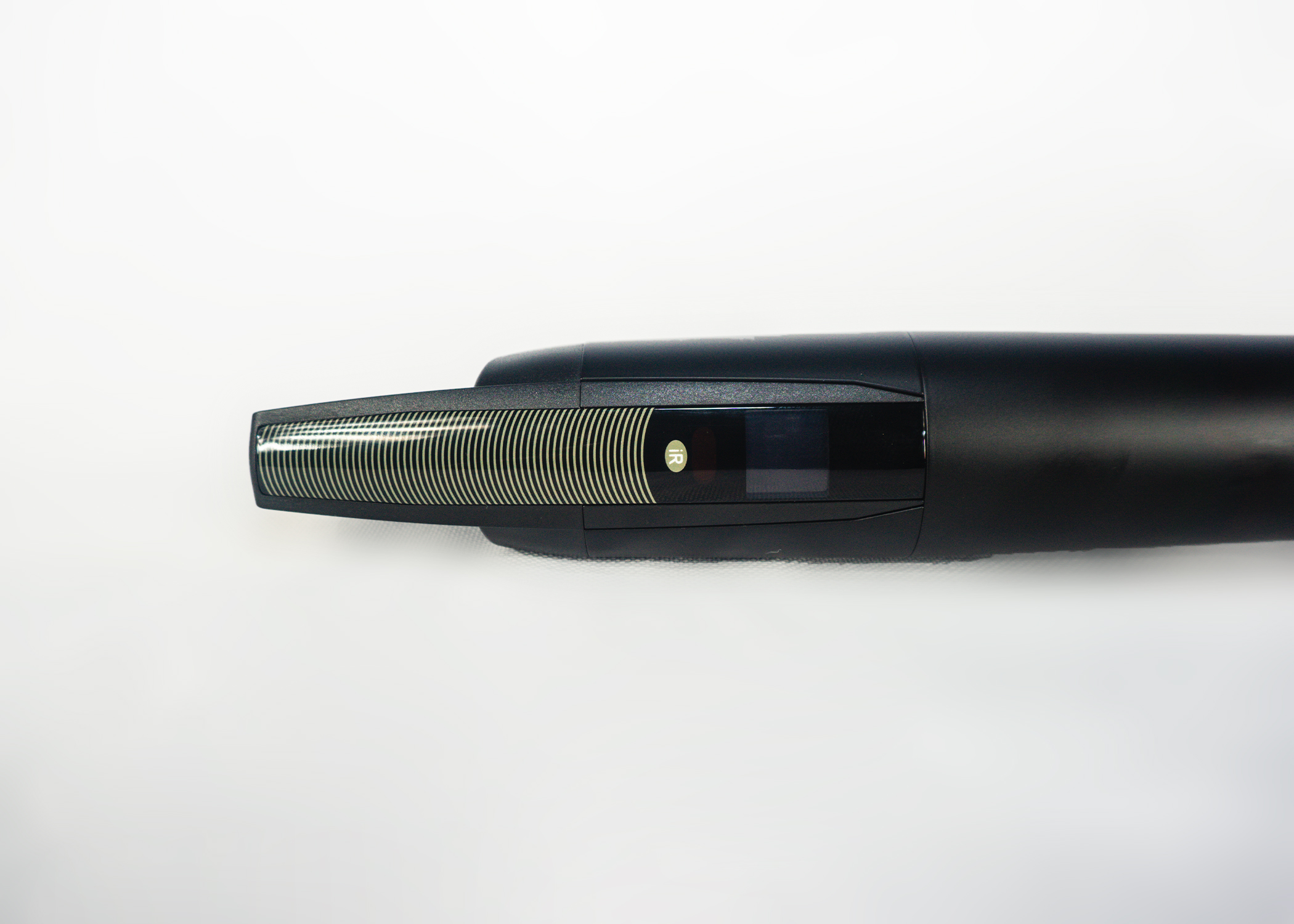

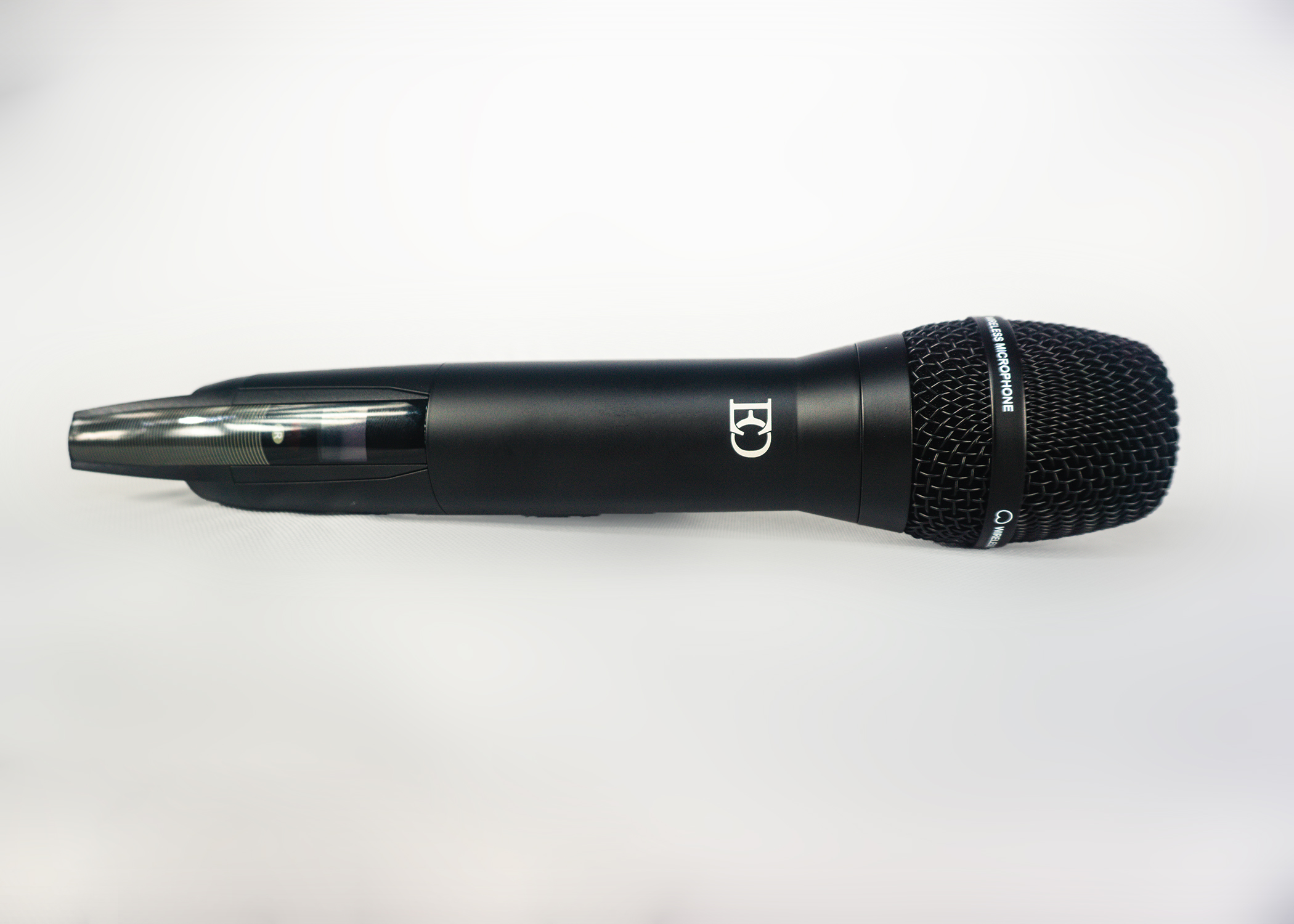

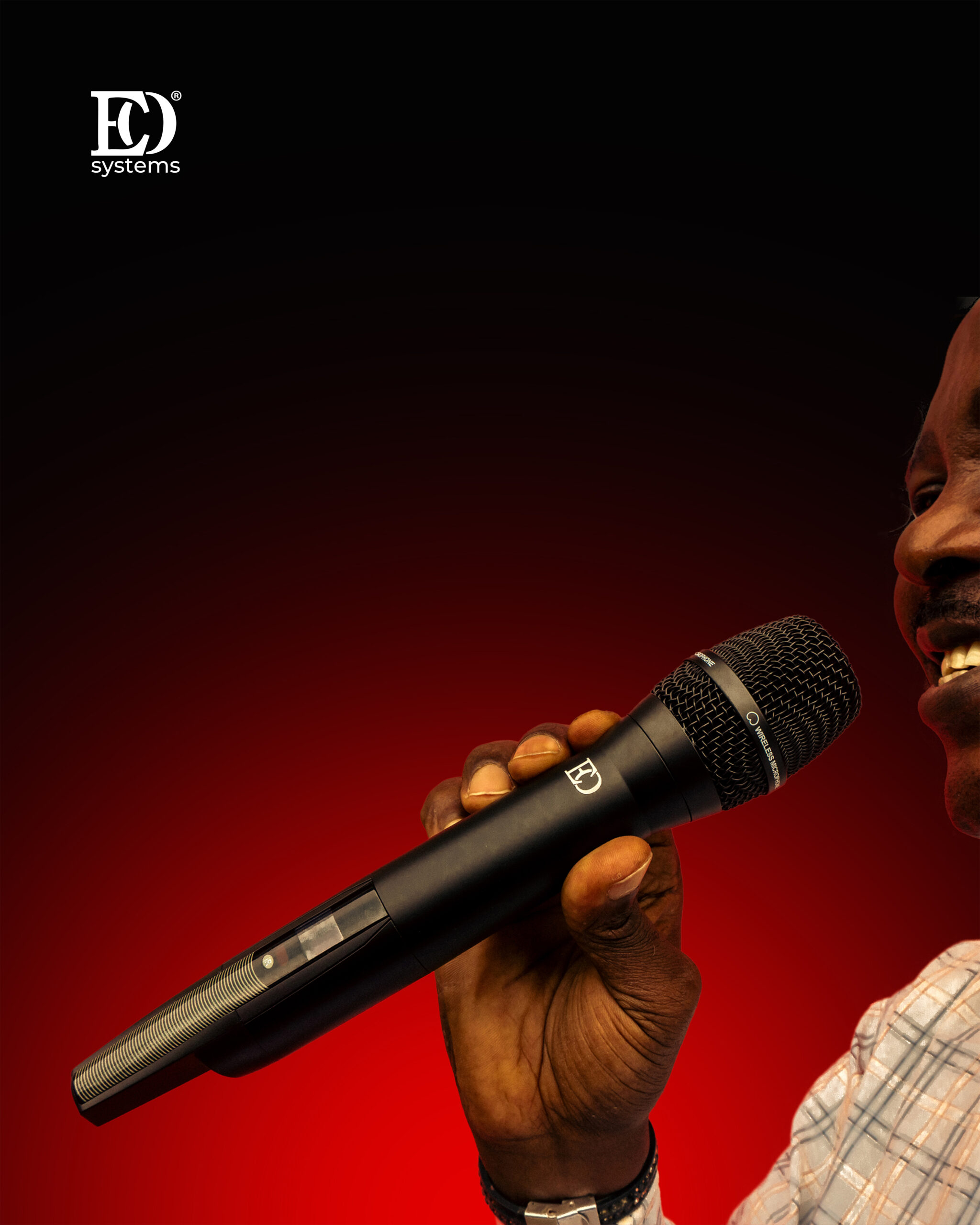

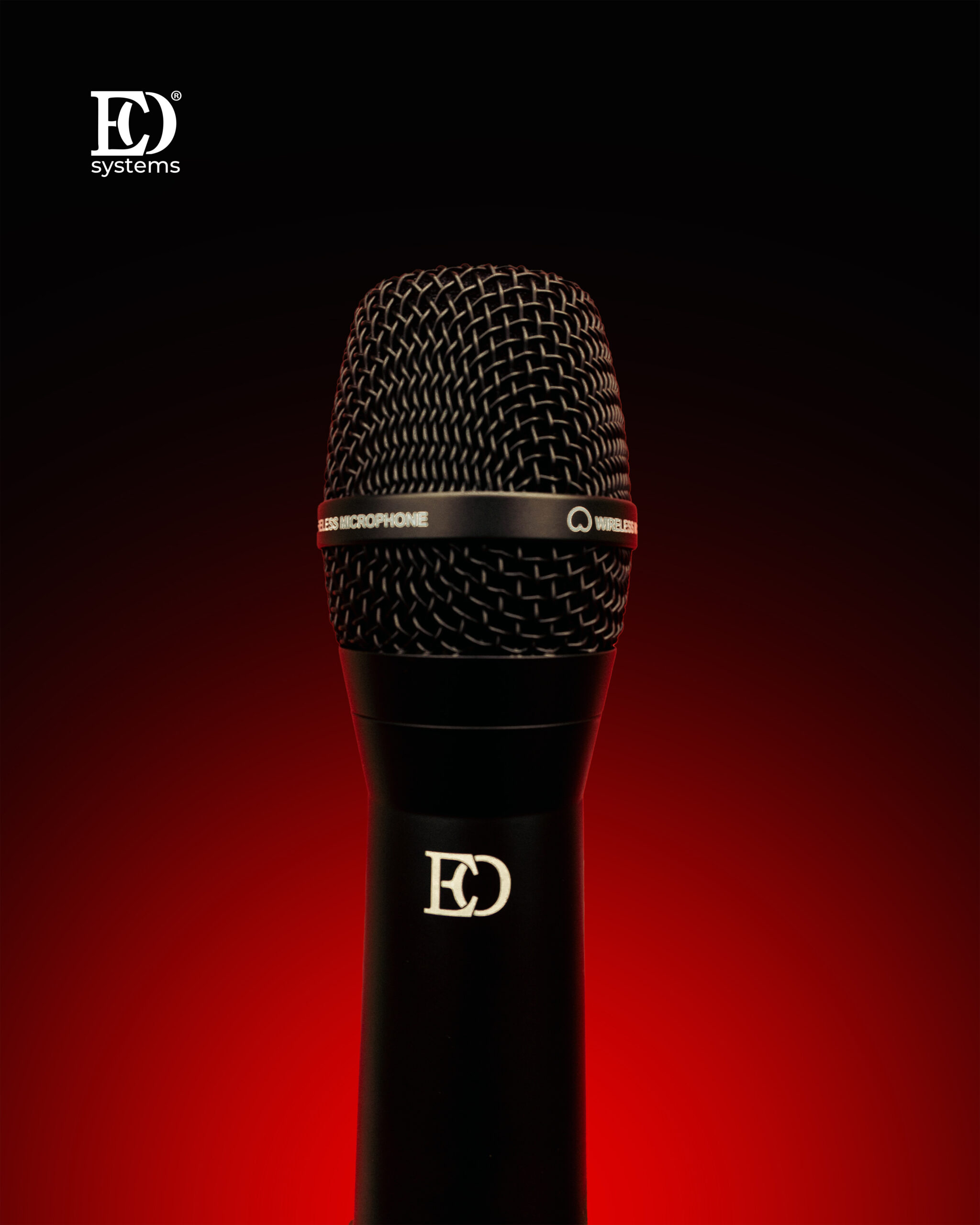

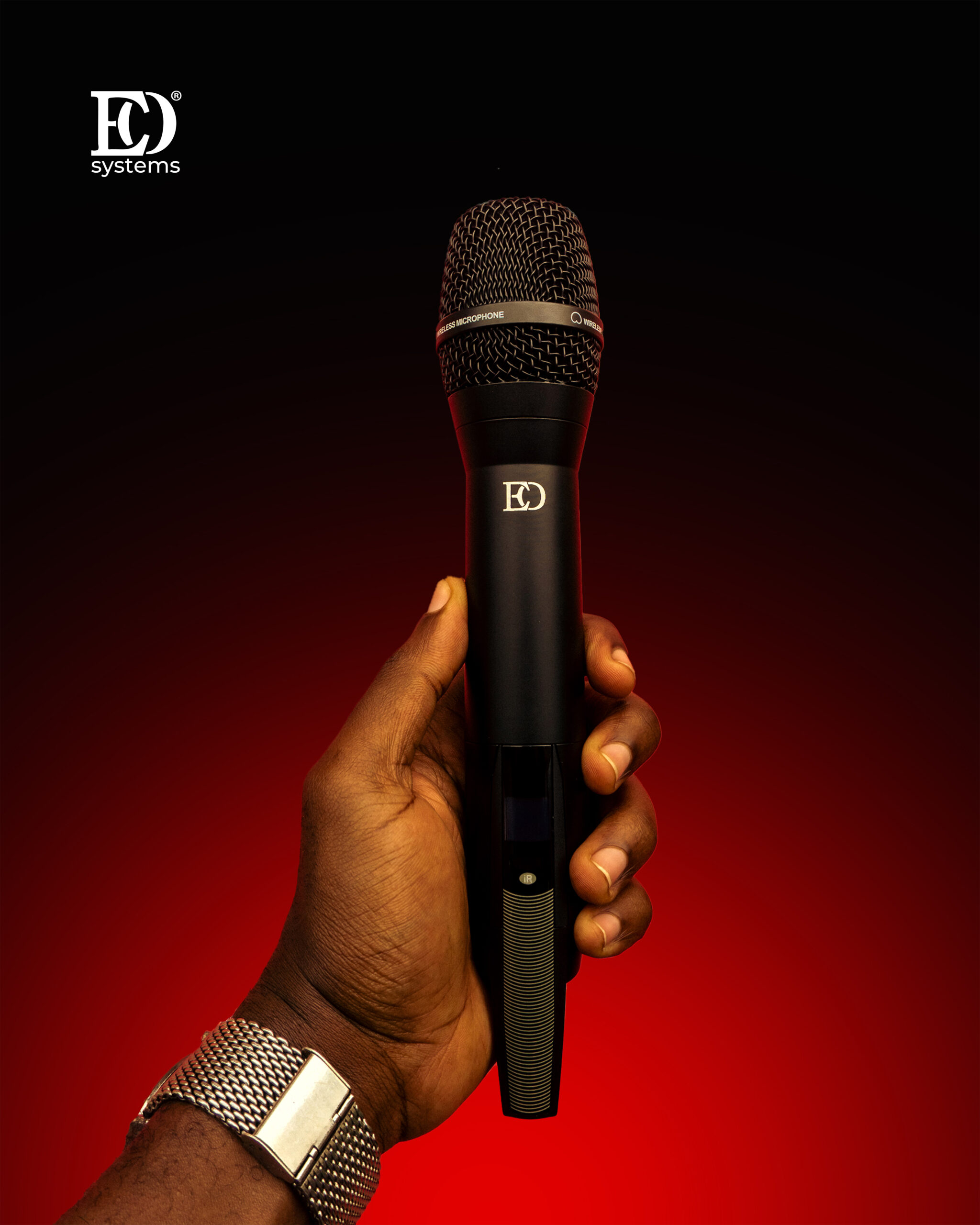

Each handheld transmitter features a durable dynamic cardioid capsule, a clear OLED display showing battery life, mute status, and frequency, and runs on 2 AA batteries for up to 7 hours of continuous use. The receiver outputs via both XLR (balanced) and 6.3mm (unbalanced) connections, so it integrates easily with existing mixers and amplifiers.

Ideal for: live events, gospel concerts and church services, conferences, corporate presentations, and rental/production companies needing dependable multi-channel wireless audio.

Specifications

System / Package Includes

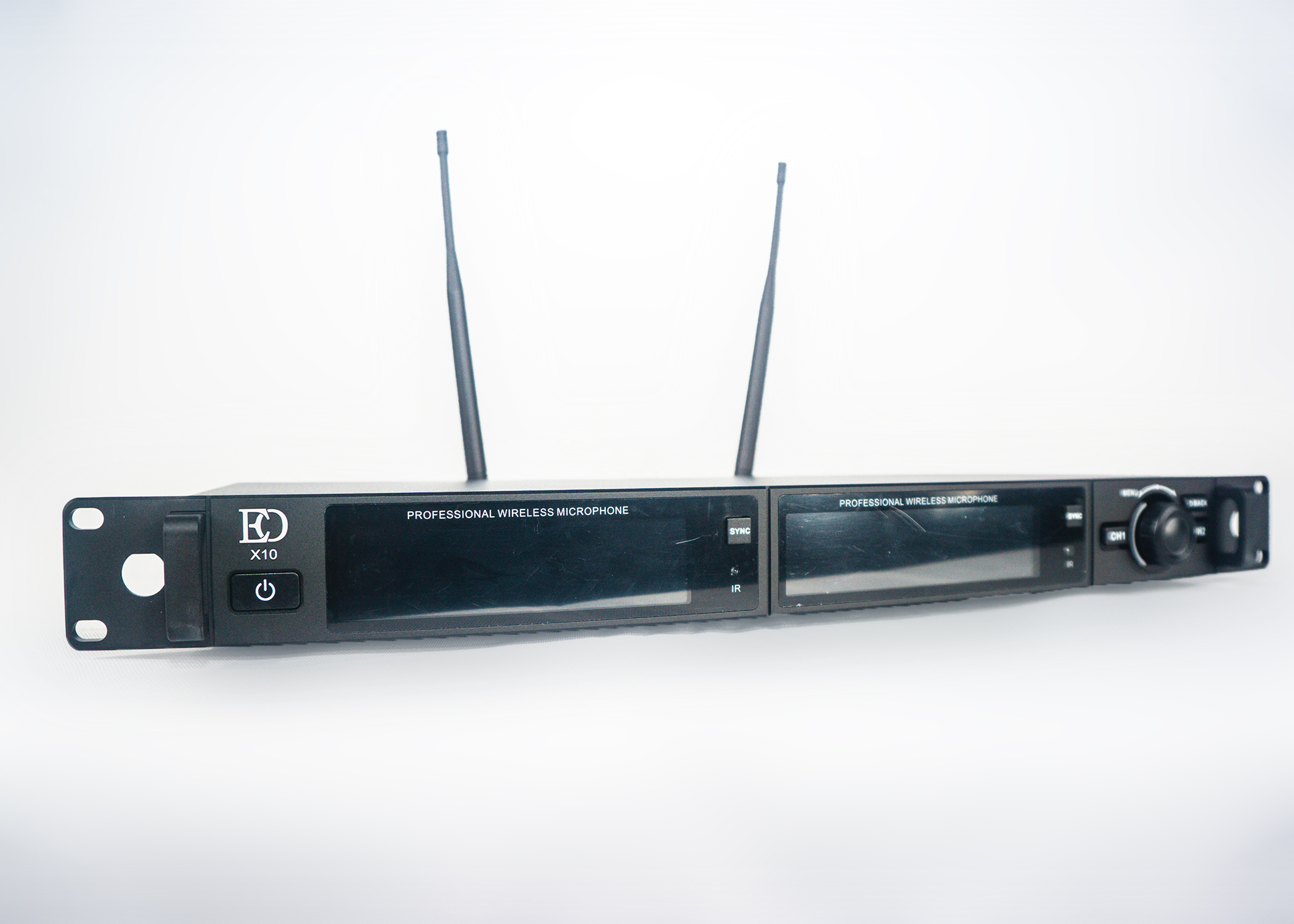

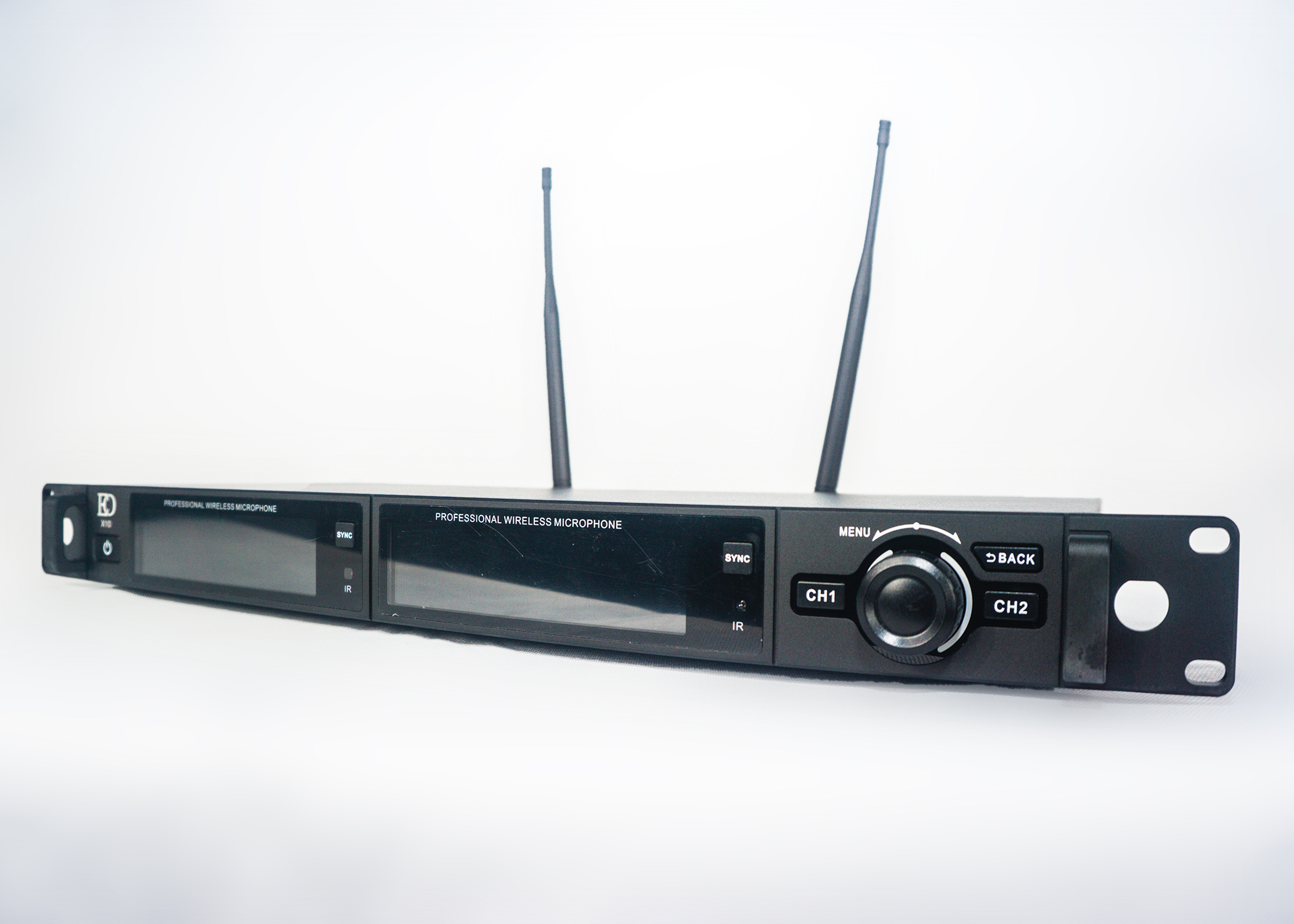

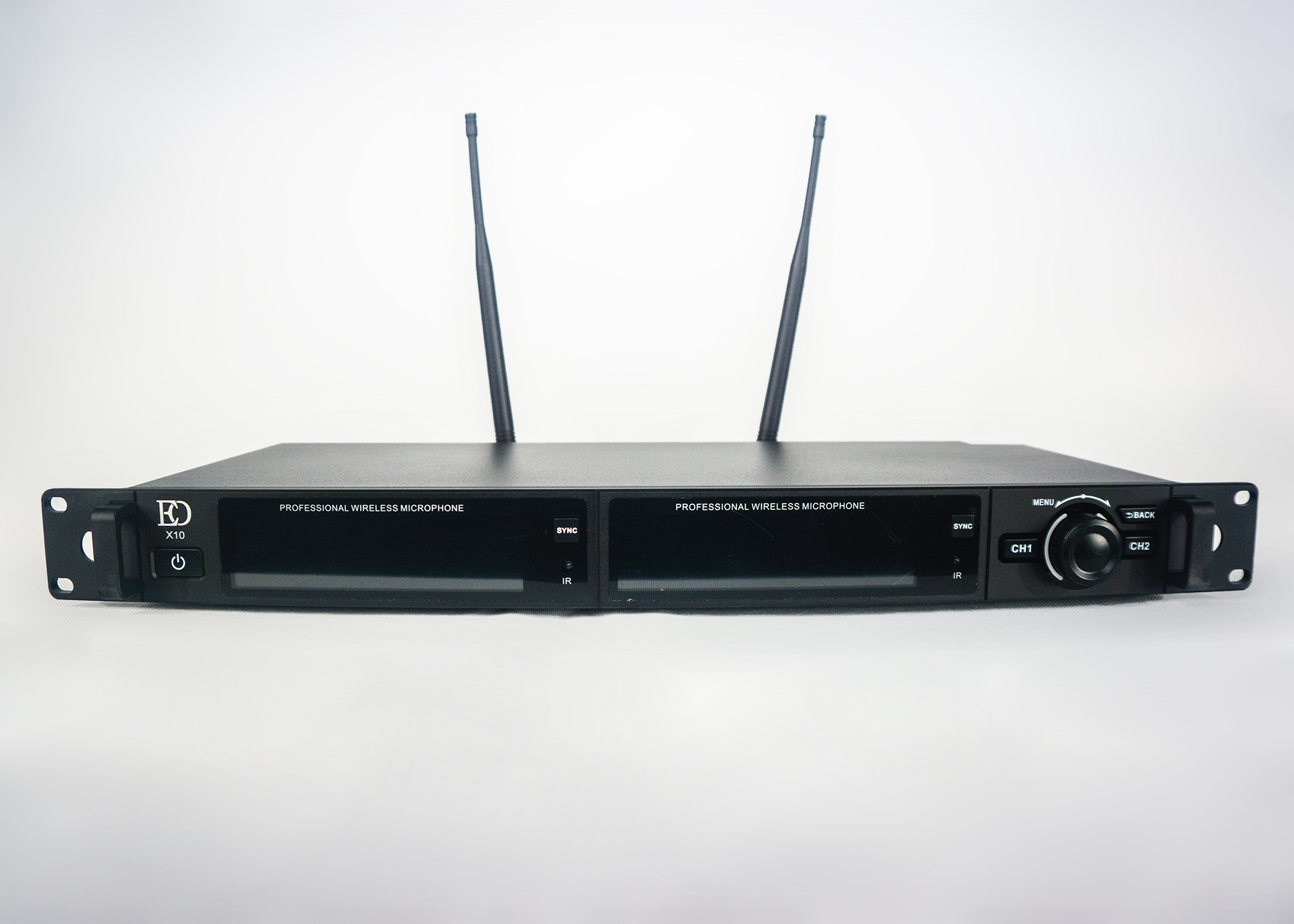

1x Receiver (dual-channel, 1U rack chassis)

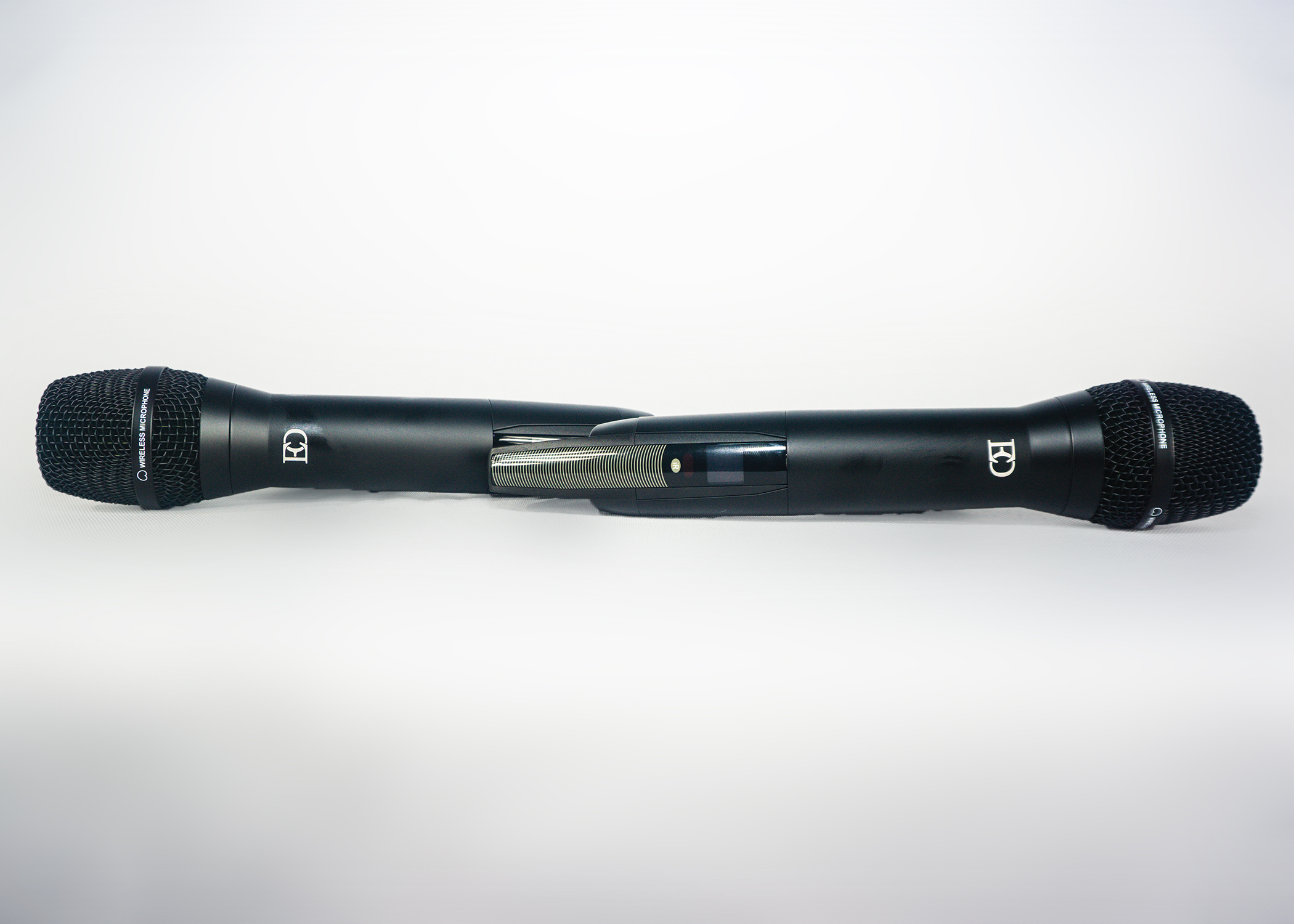

2x Handheld microphone transmitters
1x External power adapter
4x BNC antennas
1x Crossing/link cable
4x AA batteries
User’s manual

Key Features

True diversity (auto antenna selection) — no dropouts or signal cuts
PLL synthesizer + microprocessor control for stable frequency lock
Advanced noise suppression and secure squelch system
One-touch automatic frequency scan
Infrared (IR) sync pairing between transmitter and receiver
OLED display (transmitter) and LCD display (receiver) with battery, mute, frequency, and lock indicators
Adjustable squelch gate (Low/Mid/Hi) — supports stacking up to 16 units
Digital pilot tone function
Auto key-lock for stage-safe operation
Custom channel naming
